VIO Series Rugged IP65 Industrial Touch Panel PC and Monitor
The VIO Series modular touch display systems delivers an industrial-grade IP65 display solution designed specifically for HMI automation, information and communication applications. Its unique modular design makes the display system more flexible and versatile by providing a unique solution for both an industrial panel pc and a touch monitor.
Fanless & Cable-less
PCAP/Resistive Touch
Modular Design
Wide Temperature
Shock And Vibration Resistance
TPM 2.0 Security Module
VIO-200 Series
Ruggedized. High-Performance. Modular
Featured Product:
The VIO Series industrial touch display line delivers a professional IP65 display solution with screen sizes ranging from 12.1" to 24" in both widescreen (16:9) and standard (4:3) aspect ratio with a variety of processing alternatives for industrial HMI applications and deployments.
VIO-200-PC100-EHL Series
- Intel® Celeron® Processor J6413
- IP65 Rated
- 1x 260-pin DDR4 SODIMM. max up to 32GB
- 1x 2.5” SATA HDD bay
- 1x mSATA, 2x SIM socket
- 1x full-size mini PCIe (USB 2.0, SATA)
- 6x RS-232/422/485 (2x internal), 2x USB 3.2 Gen 2, 2x USB 2.0
- 8x DI + 8x DO with isolation
VIO-200-PC100-EHL:
VIO-200-MX100H:
Embedded Legacy Product:
Intel® Celeron® J6413 is designed to deliver seamless multitasking for demanding applications while still offering optimal balance of power and efficiency.
Intel® Celeron® J1900 is designed for low-power consumption, providing a balance between power efficiency and basic performance needs.
7th Gen Intel® Core™ delivers exceptional performance, perfect for tacking multiple demanding tasks with ease, while offering optimal balance of power and efficiency.
VIO Display Module is designed to offer optimal flexibility and scalability based on screen size, ratio, and touch configuration.
VIO-212-MX100H 12.1" 4:3 IP65 Industrial Touchscreen Monitor
VIO-212-PC100-EHL 12.1" XGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-212-PC100-J1900 12.1" 4:3 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-212-PC100-KBL-U 12.1" 4:3 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-215-MX100H 15" 4:3 IP65 Industrial Touchscreen Monitor
VIO-215-PC100-EHL 15" XGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-215-PC100-J1900 15" 4:3 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-215-PC100-KBL-U 15" 4:3 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-217-MX100H 17" 4:3 IP65 Industrial Touchscreen Monitor
VIO-217-PC100-EHL 17" SXGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-217-PC100-J1900 17" 4:3 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-217-PC100-KBL-U 17" 4:3 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-219-MX100H 19" 4:3 IP65 Industrial Touchscreen Monitor
VIO-219-PC100-EHL 19" SXGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-219-PC100-J1900 19" 4:3 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-219-PC100-KBL-U 19" 4:3 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-W215-MX100H 15.6" 16:9 IP65 Industrial Touchscreen Monitor
VIO-W215-PC100-EHL 15.6" Full HD Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-W215-PC100-J1900 15.6" 16:9 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-W215-PC100-KBL-U 15.6" 16:9 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-W221-MX100H 21.5" 16:9 IP65 Industrial Touchscreen Monitor
VIO-W221-PC100-EHL 21.5" Full HD Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-W221-PC100-J1900 21.5" 16:9 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
VIO-W221-PC100-KBL-U 21.5" 16:9 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
VIO-W224-MX100H 24" 16:9 IP65 Industrial Touchscreen Monitor
VIO-W224-PC100-EHL 24" Full HD Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
VIO-W224-PC100-KBL-U 24" 16:9 IP65 Industrial Touchscreen Computer with 7th Gen Intel® Core™
Standardized Display Sizes & Compute for Industry 4.0
World Class Computers. World Class Certifications
Download Our Solution Guide For Embedded Computer and Industrial Touch Display Solutions.
Features

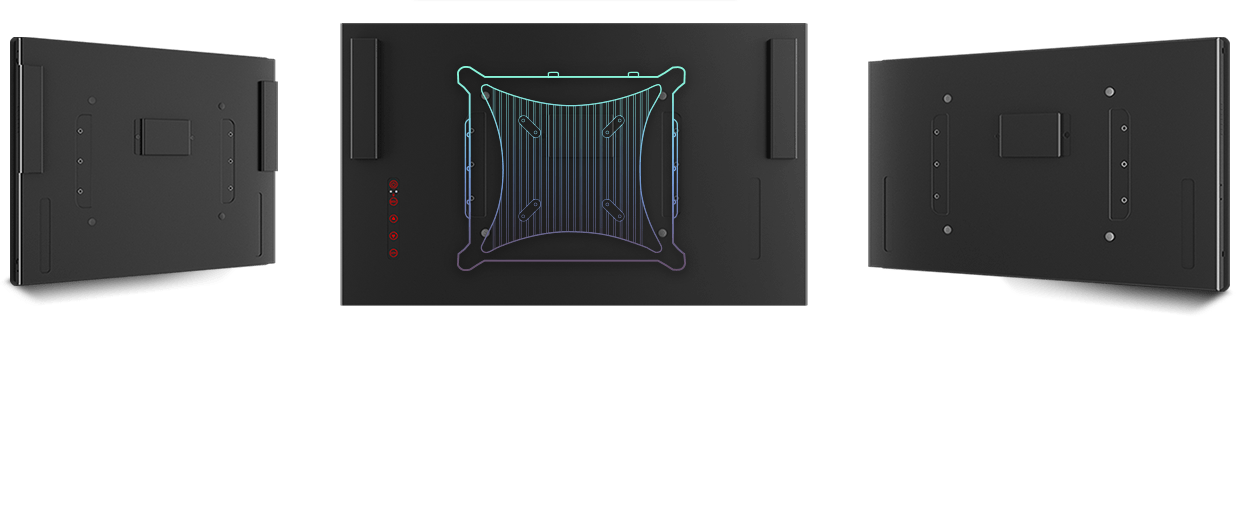

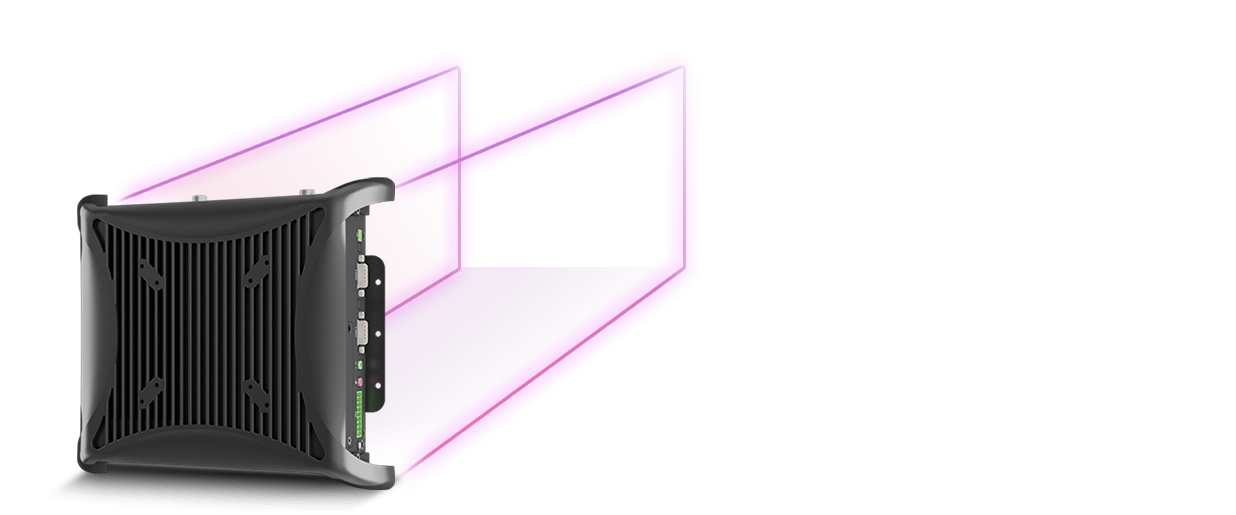

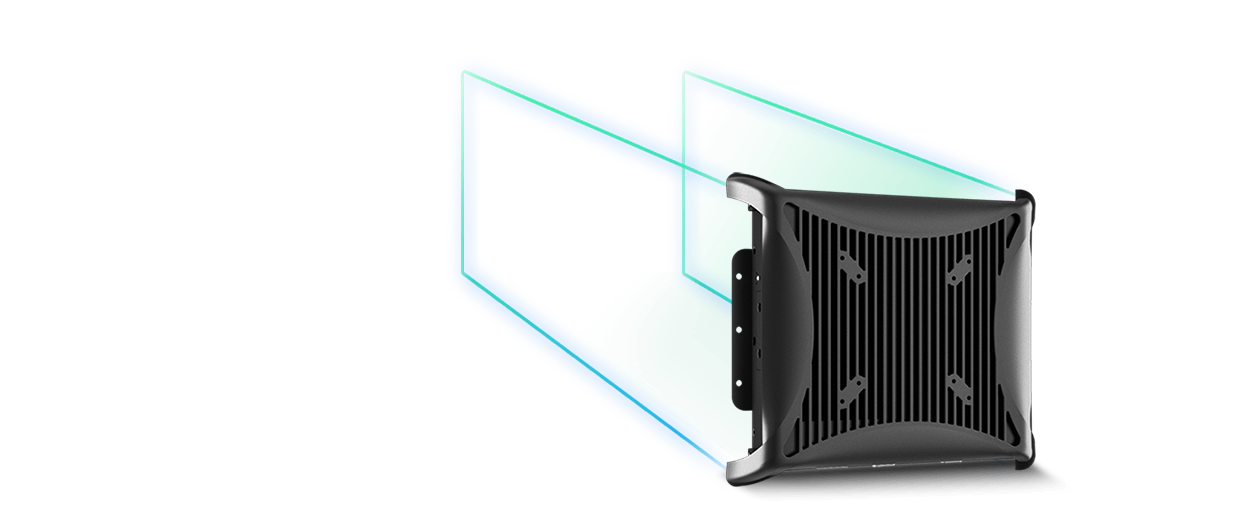

Patented MDM Modular Technology Design Concept Offers Flexibility With Ease
Premio's patented modular design technology is fully optimized to Premio's industrial all-in-one VIO panel PC. The VIO series offers a display module bundled with either an embedded PC unit or a display control module for optimal flexibility and scalability.
- Hundreds of system configuration selections
- Maximum flexibility and scalability.
- Installation service and upgrade efficiently
- Cost-effective, versatile solution
- Resistive or capacitive (PCAP) touch option
Low-Power Embedded Processors
Industrial computer and panel pcs leverage the latest advancements in x86 silicon from Intel and deliver incredible processing power to analyze data and run intelligent workloads. Our computing designs consider a balance of performance and power-efficiency in the most mission-critical IoT deployments. Specific processors in low TDP options help system integrators scale with confidence and long-term reliability.
Fanless And Rugged Design
- Prevent cabling signal degradation and latency
- High shock and vibration tolerance
- Prevent failure / repair / replacement caused by moving fan
- Extends mean time between failure and minimizes maintenance costs
- Wide operating temperature: -10°C to 60°C
- Wide power Input: 9VDC – 36VDC
Scalability in Panel Sizes
Versatility in Touchscreen Type
Different Frame Bezel
Front Panel IP65 Waterproof
- Aluminum die-casting enclosure
- Dust tight enclosure
- Water Projected by a nozzle against the enclosure will have no harmful effect
- Protection against the harshest environment: water, moisture, dust, and heat
Advanced Expansion with M.2 Capability
The PC100-EHL series boosts its capabilities with M.2 slot, enabling advanced expansions for Hailo AI modules for AI and machine learning, 5G modules for fast, low-latency communication essential in IoT, and SSDs for quick, reliable data storage.
- 1x M.2 (E Key, PCIe x1, USB 2.0)
- 1x M.2 (B Key, PCIe x2 + USB 3.2 Gen1)
Removable SATA Drive
Featuring a removable SATA drive, empowering you with unparalleled flexibility and convenience. Seamlessly swap out drives for effortless data management and security, ensuring your workflow stays uninterrupted and adaptable to your evolving needs.
Universal Bracket Expansion
In industrial operations and connectivity, compatibility with various devices is crucial. The universal I/O bracket is designed to maximize even more I/O when needed.
Easy Installation & Maintenance
Less Application Development and Validation Time
Zero Downtime and Upgrades
Easy Customization
Long-Term Reliability
High Flexibility And Scalability

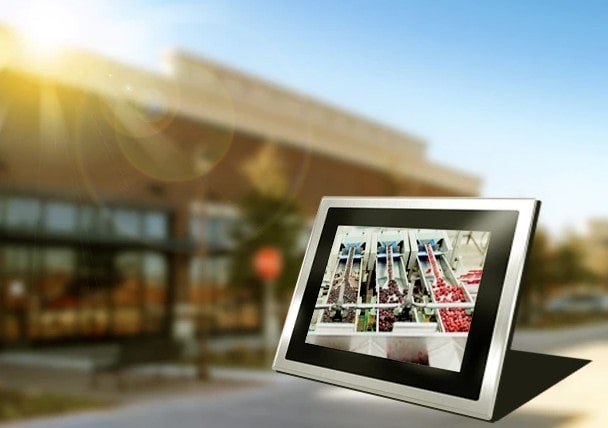

High-Brightness Panels for Enhanced Display Visibility (Optional)
Available options include 1,000+ nit high-brightness panels to aid readability. Operating under extreme sunlight conditions may impede a display’s visibility. The high-brightness display option for rugged panel PCs and touch monitors boosts overall display visibility in glaring environments. Ideal for outdoor applications such as in-vehicle displays, outdoor kiosk machines and digital signages.

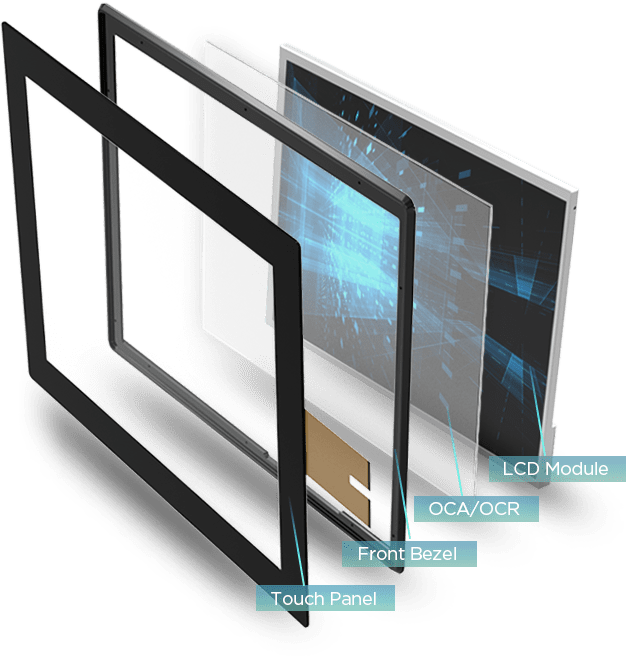

Optical Bonding Technology for Improved Display Readability (Optional)
Optical bonding technology refers to the process of injecting a resin in-between the touch glass and the LCD display to enhance the readability and durability. Optical bonding option sustains clarity and vibrancy of the display under high humidity or bright sunlight conditions. The elimination of an air gap between the cover glass and display keeps out dust and moisture, which prevents condensation on the display’s surface. Additionally, optical bonding increases display contrast and readability in bright ambient environments by reducing the internal reflection between the cover glass and display. Optical bonding option is ideal for applications such as in-vehicle displays, public digital signages and outdoor kiosks.
