RCO-3000-KBL-U Series
High-Performance Small Form Factor Computer for Heavy Workloads with 7th Gen Intel® Core™ Mobile-U Processor
The RCO-3000-KBL-U series performance edge computer supports 7th Gen Intel Core i5 and i3 Mobile-U processors. This series offers higher performance with amazing rugged quality and flexible I/O expandability. Wireless connectivity for LTE cellular and in-vehicle features make the RCO-3000-KBL-U ideal for transportation technologies needing high performance such as remote fleet management in a compact form-factor.
- Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U
- 1x DDR4 SODIMM. max up to 16GB
- Triple independent display supported by 1x VGA and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay (1x internal, 1x removable) with RAID 0, 1, 5 support, 1x mSATA (shared by 1x Mini PCIe), and 1x CFast (shared by 1x mSATA)
- 2x full-size mini PCIe for communication or expansion modules, 2x SIM socket
- 5x RS-232/422/485 (w/ 3x internal), 4x USB 3.0, 2x USB 2.0
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input supporting AT/ATX mode
- -40°C to 70°C extended operating temperature
Products:

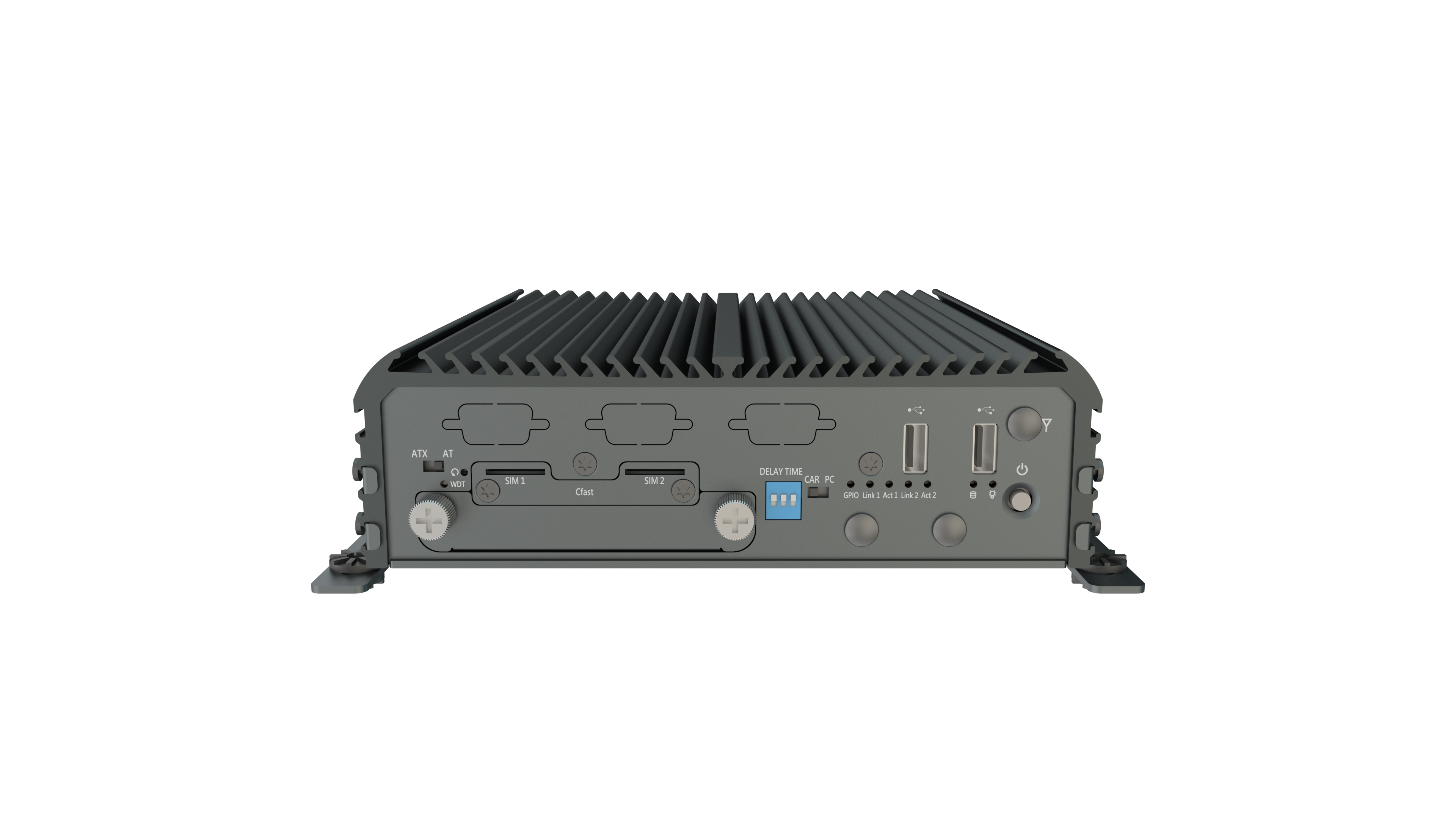

RCO-3000-KBL-U Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor
Regular price total regular price: $0.00

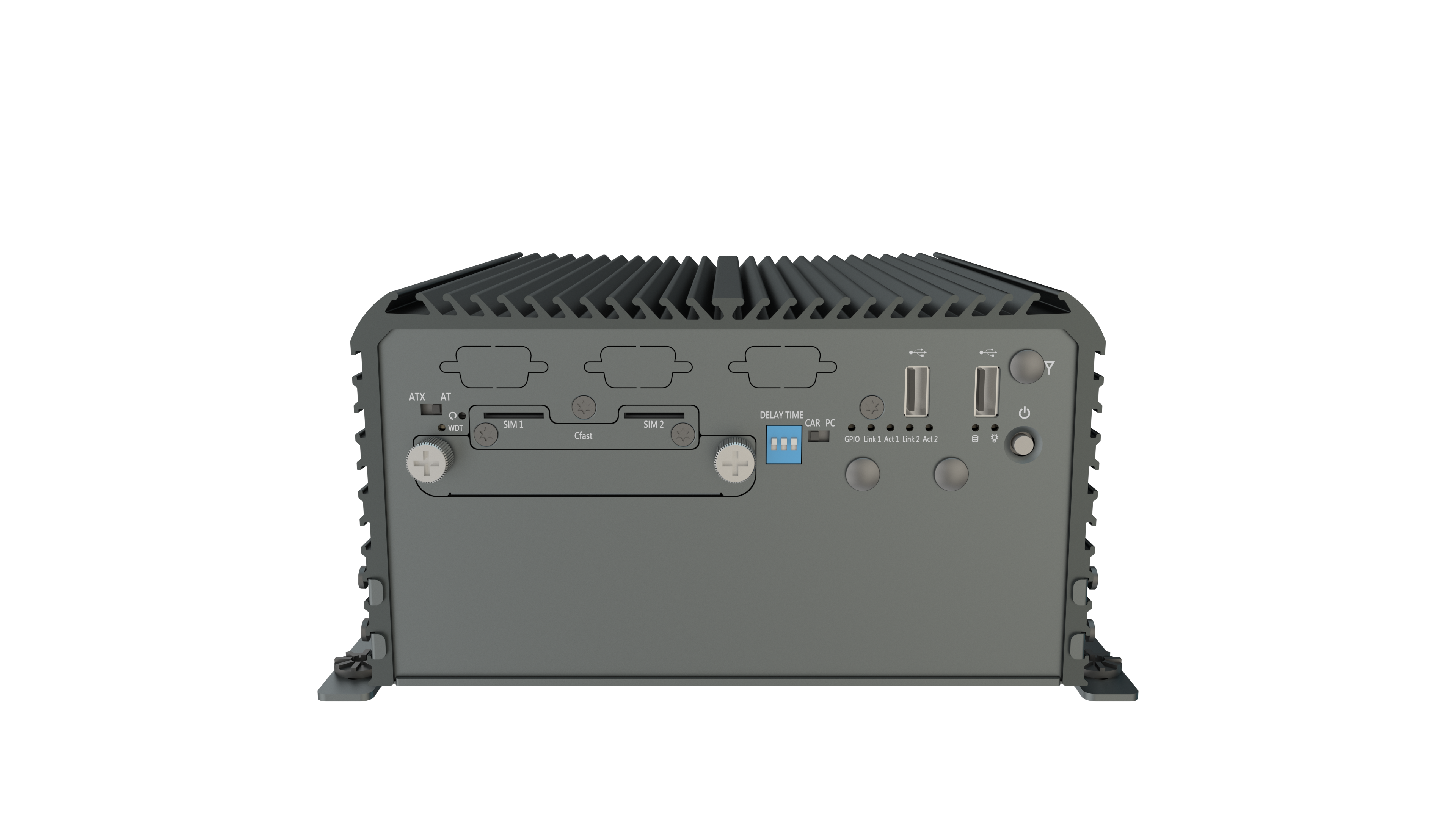

RCO-3000-KBL-U-2 Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor, 2x Expansion

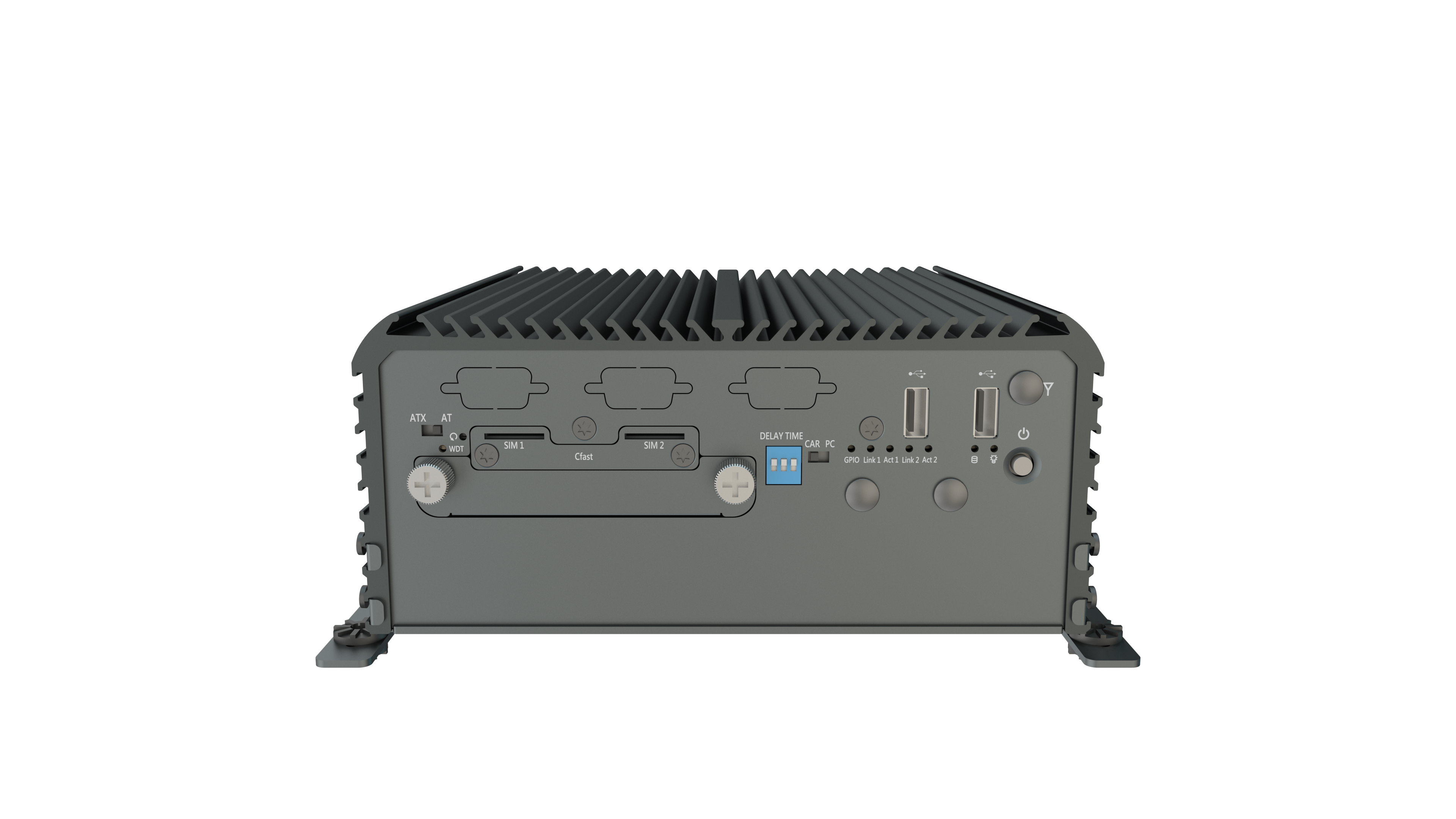

RCO-3000-KBL-U-1 Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor, 1x Expansion
High Performance 7th Gen Intel® Core™ Mobile-U Processors
Concentrated power from Intel® Core™ processors deliver better application performance for heavier workloads. Edge deployments needing increased computing capabilities benefit from the higher output and optimization that Mobile-U processors provide.
- Dual-Core CPU with 2.60 to 3.50GHz Frequency Range
- 15W Thermal Design Power
- Intel HD Graphics 620 for Ultra HD quality
- PCIe 3.0 Expansion support
EDGEBoost I/O - Modular Daughterboards
The RCO-3000-KBL-U features a patented modular bracket for additional configurable I/O ports. Choose between various connectors to a specific edge deployment.
- Single Universal I/O Module
- Support for USB, GPIO, COM and LAN/PoE
- M12 lockable connectors for a secure connection
- Up to 4 LAN/PoE ports
- Discover EDGEBoost I/O
Storage
Designed with an easily removable storage drive bay for quick access for swapping different drives.
- 1x Internal 2.5" SATA HDD Bay
- 1x Removable 2.5" Sata HDD Bay
- 1x mSATA SSD Slot
- 1x CFast Memory Card Slot
Power Ignition Managment
Required for all in-vehicle applications, power ignition management controls the rugged edge computer’s power source and function. By sensing the ignition status of the engine, the computer will automatically power on/off accordingly.
- Support for both 12V and 24V electrical systems
- Configurable delay timer to safely save data before shutdown
- Automatically detects ignition status to control computer boot sequence
- Switch between PC and CAR mode for ignition sensing
- Learn more

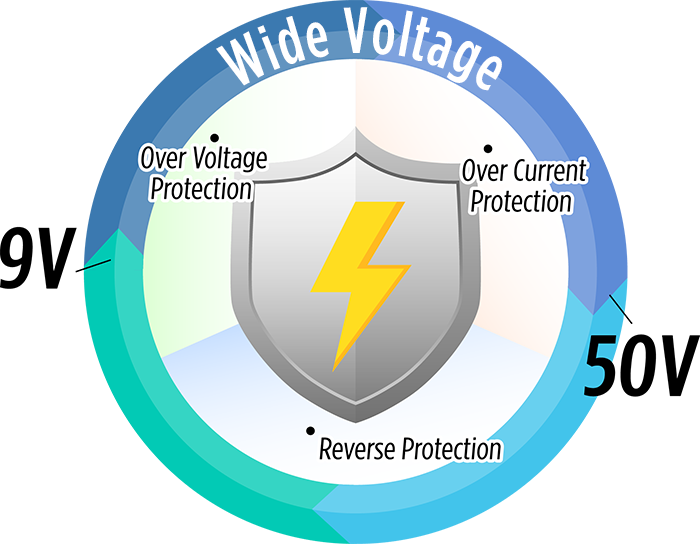

Power Protection
Fluctuations and spikes in voltage can cause potential harm to computers and result in operational setbacks. Rugged edge computers need to have proper power protection to stay reliable for mission-critical operations.
- Wide voltage input ranges from 9 to 50 VDC
- Overcurrent and overvoltage protection
- Reverse voltage protection
Support Up to 2 PCIe or PCI slots for Add-In Cards
Internet Connectivity
Connectivity is one of the most important aspect to achieve edge computing. Having Wifi, Bluetooth, and LTE connection connect the machine to the IoT. This expands the machine's potential to greater possibilities.
- Dual External SIM Socket
- 4 Antennas
- Compatible with Major America network provider: AT&T, T-Mobile, Verizon
