Industrial Motherboards

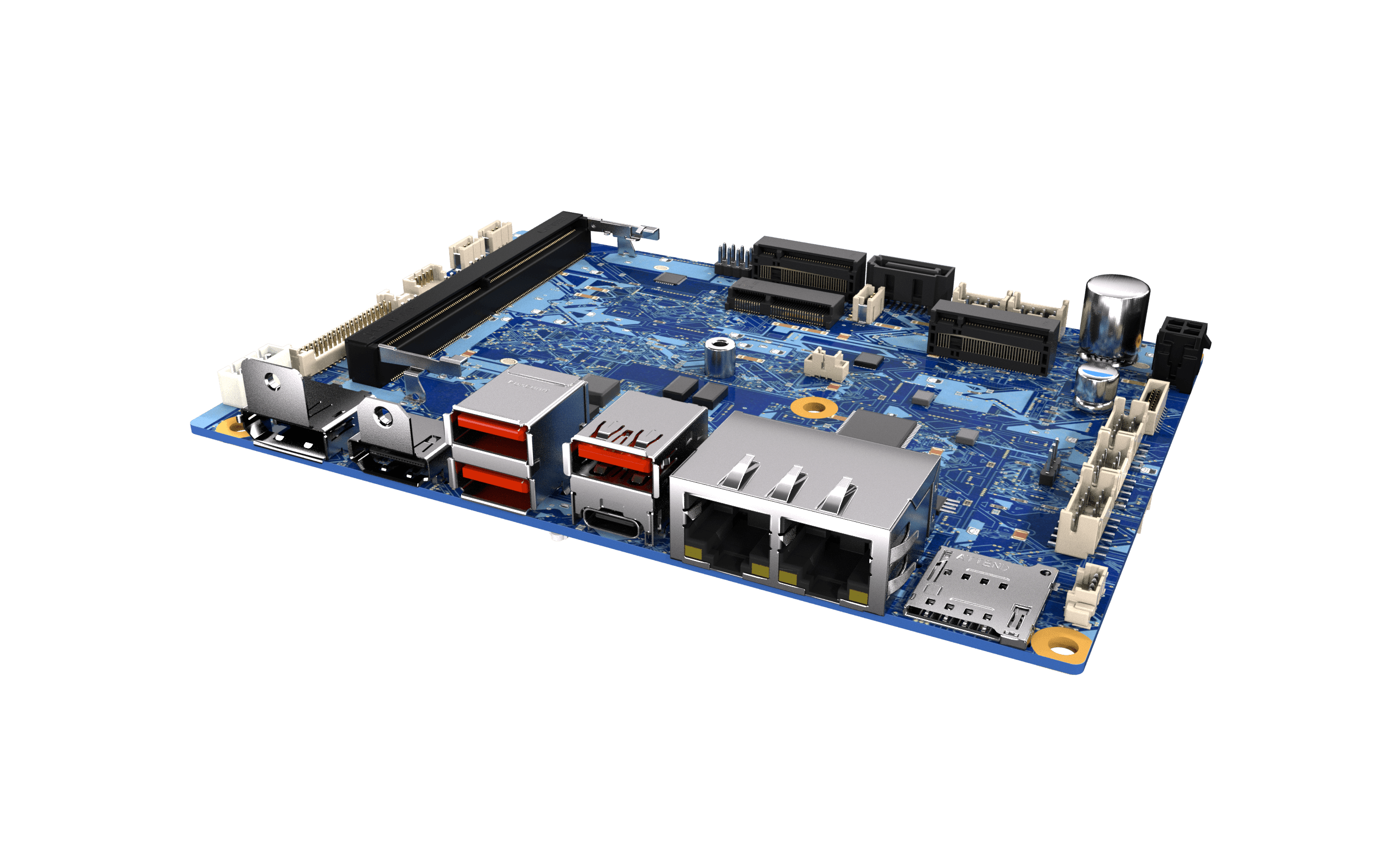

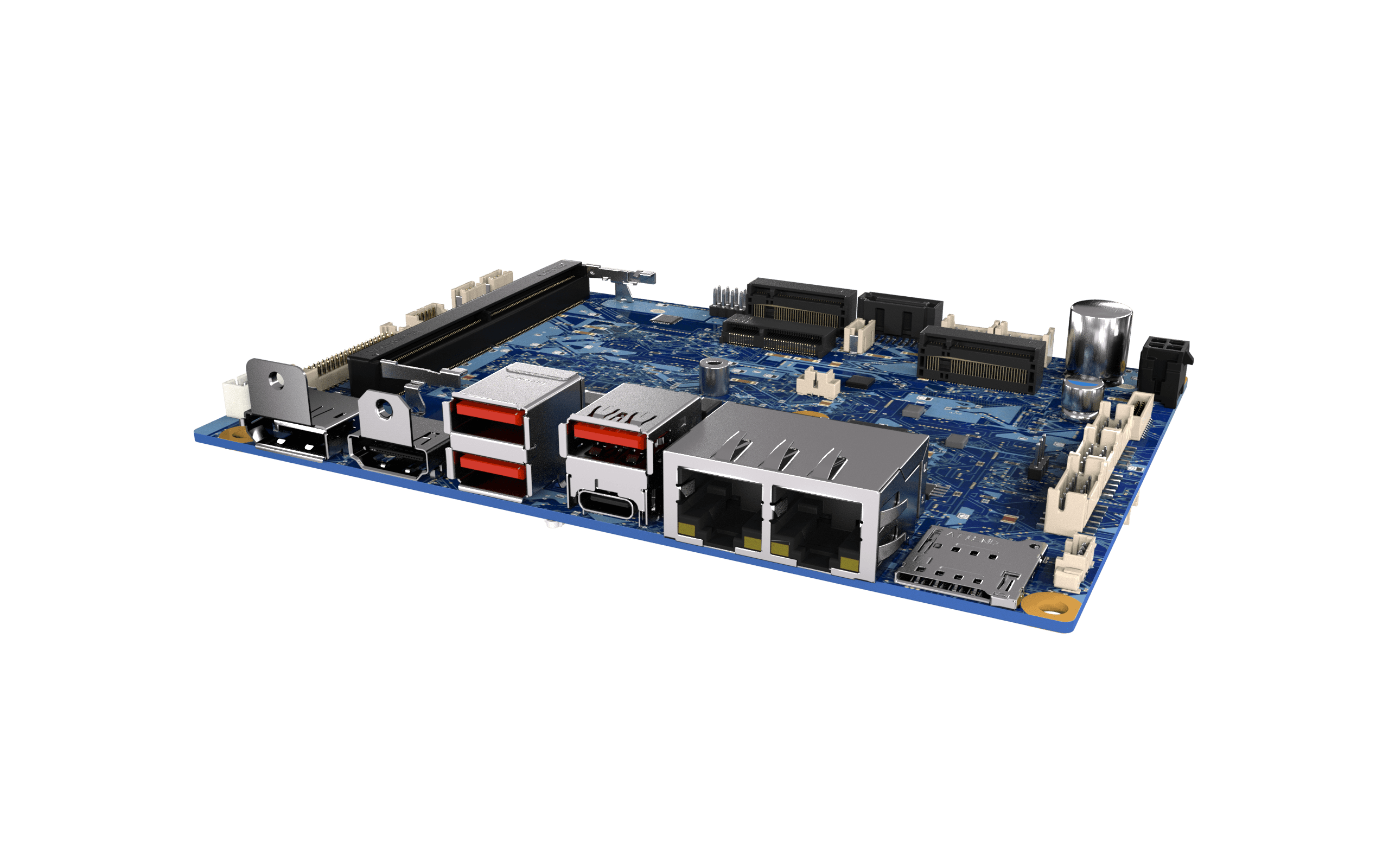

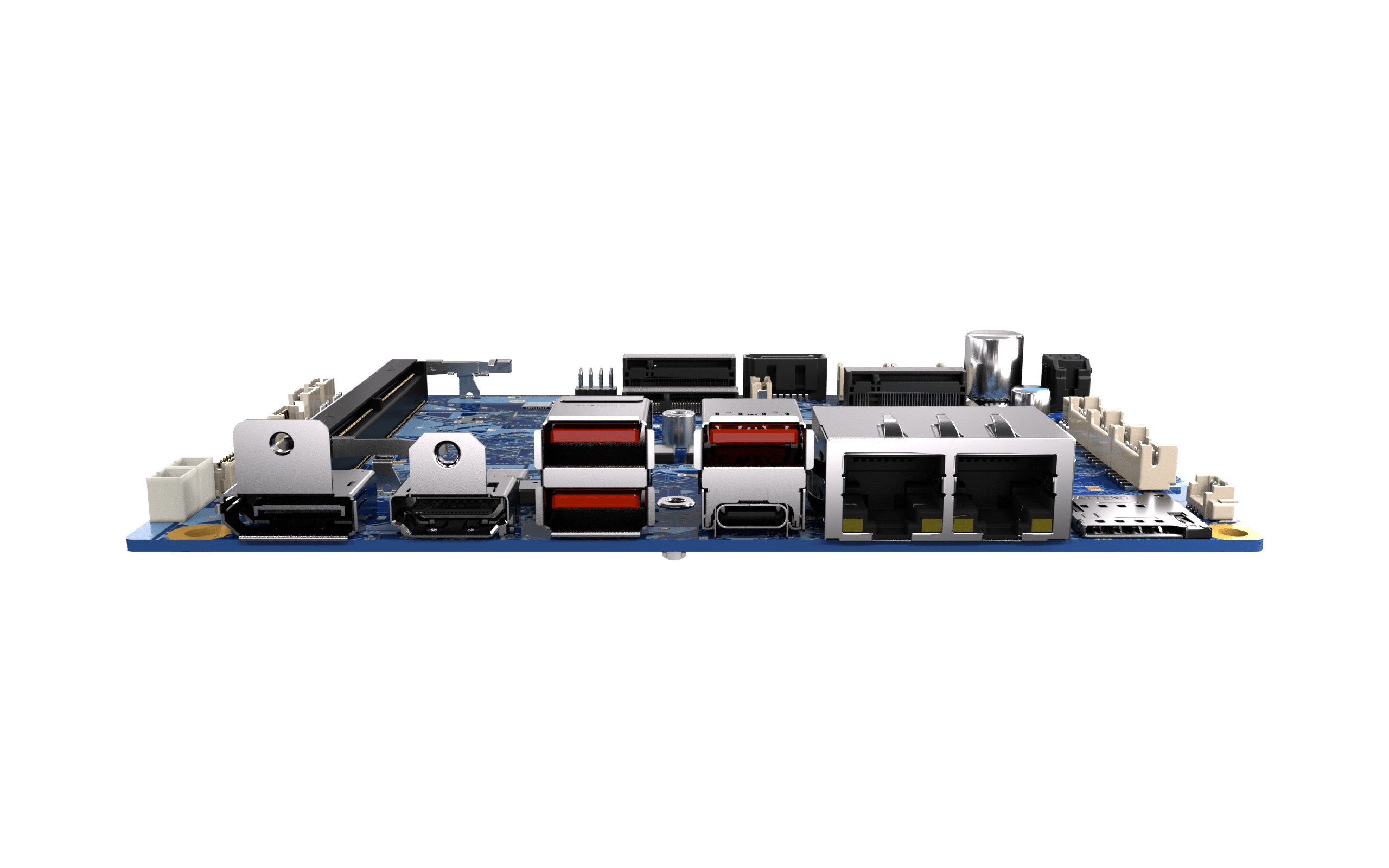

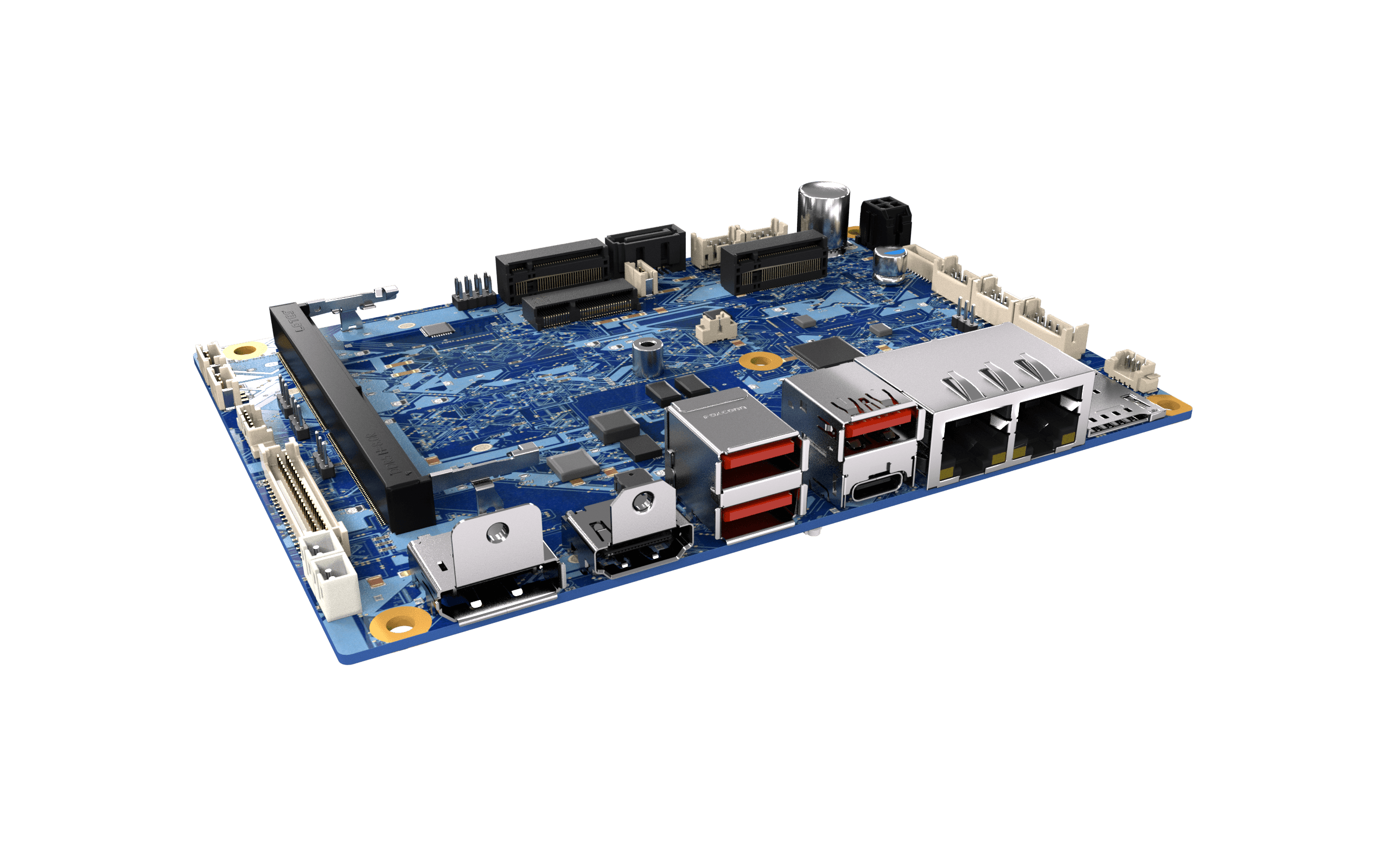

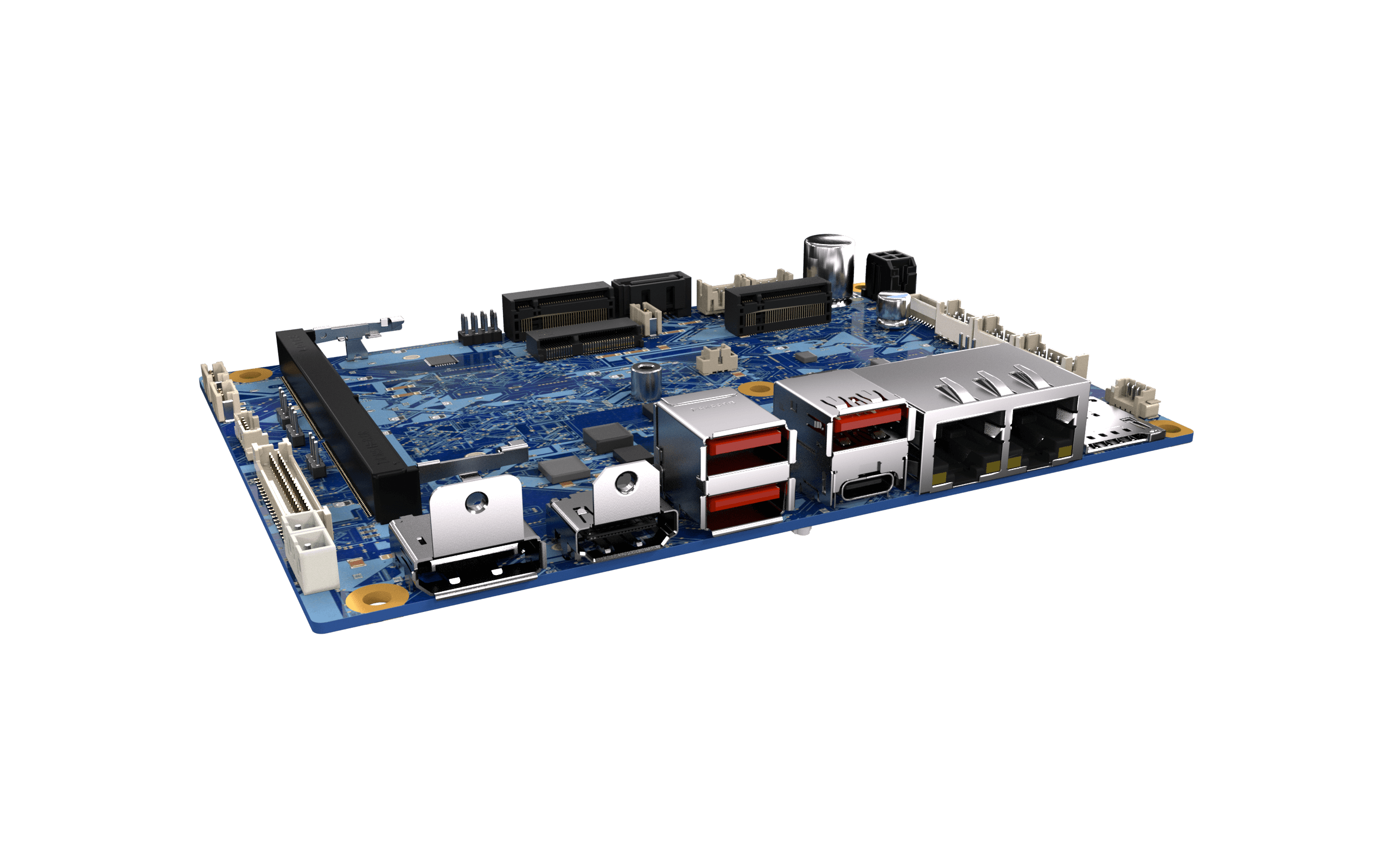

CT-DAS02
3.5" SBC Industrial Motherboard With Intel® Processors N-series N97/N150, 2x 2.5GbE LAN, LTE/5G Nano SIM Socket
Key specifications
- Supports Intel® N150/N97 Processors
- 1x 262-pin DDR5 4800 SO-DIMM. Max. up to 32GB (Non-ECC)
- 2x Intel® i226V 2.5 GbE
- Triple independent displays supported: DP, HDMI, LVDS or eDP
- 1x M.2 M key 2280 NVMe, 1x M.2 E key 2230
- 1x M.2 B key 2242 NVMe/5G, 1x Dual Nano SIM Slot
- 2x USB 3.2 Gen 2 Type A, 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C, 2x USB 2.0 (Internal)
- 1x RS-232/422/485, 1x RS-232 (internal), 1x 8-bit GPIO
- 1x SATA 3.0 6Gb/s (Support AHCI) share with M.2 B key
- Watchdog timer 1~255 sec. System reset
- TPM 2.0 Supported
- Wide Voltage DC IN 9~36V
