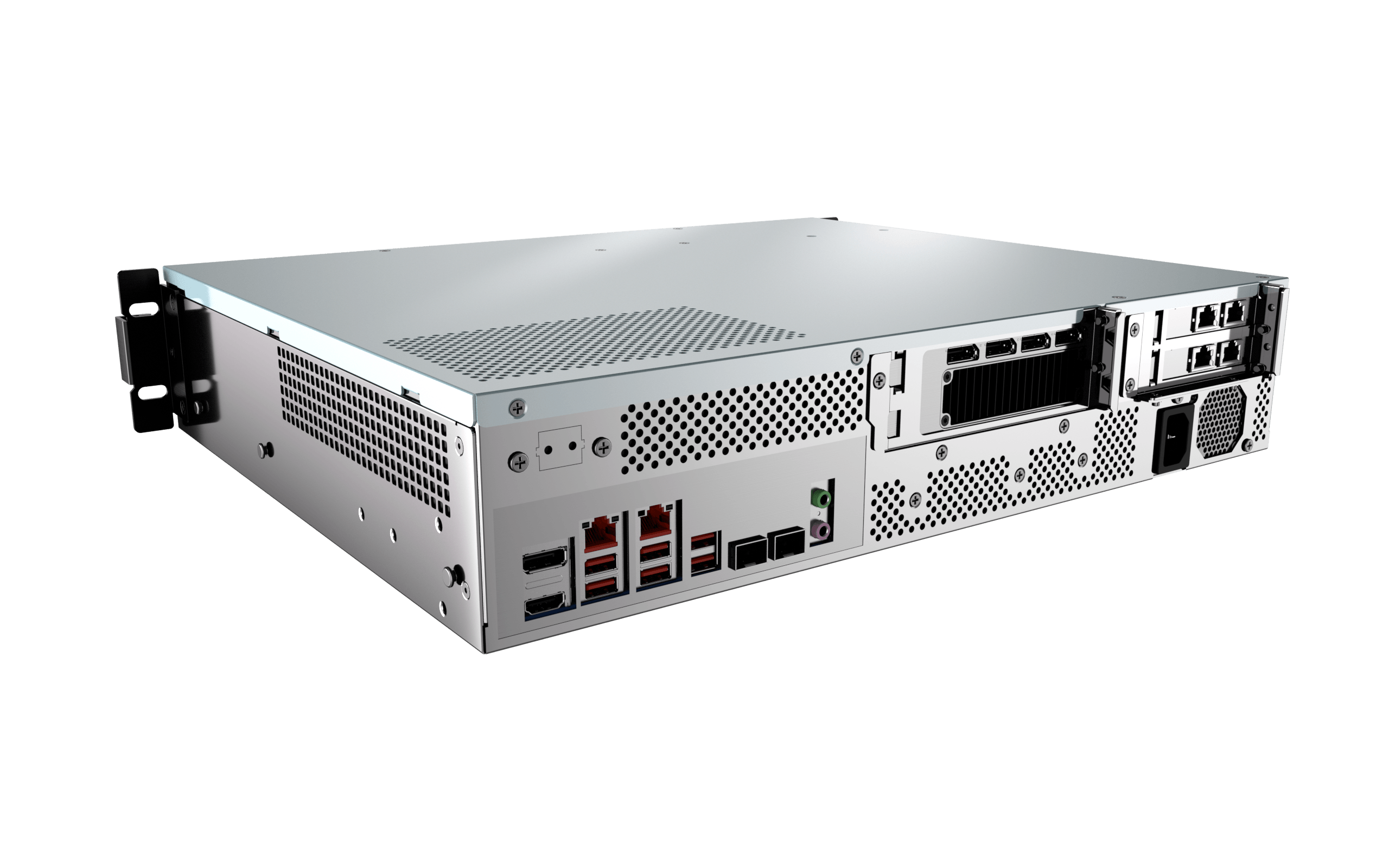

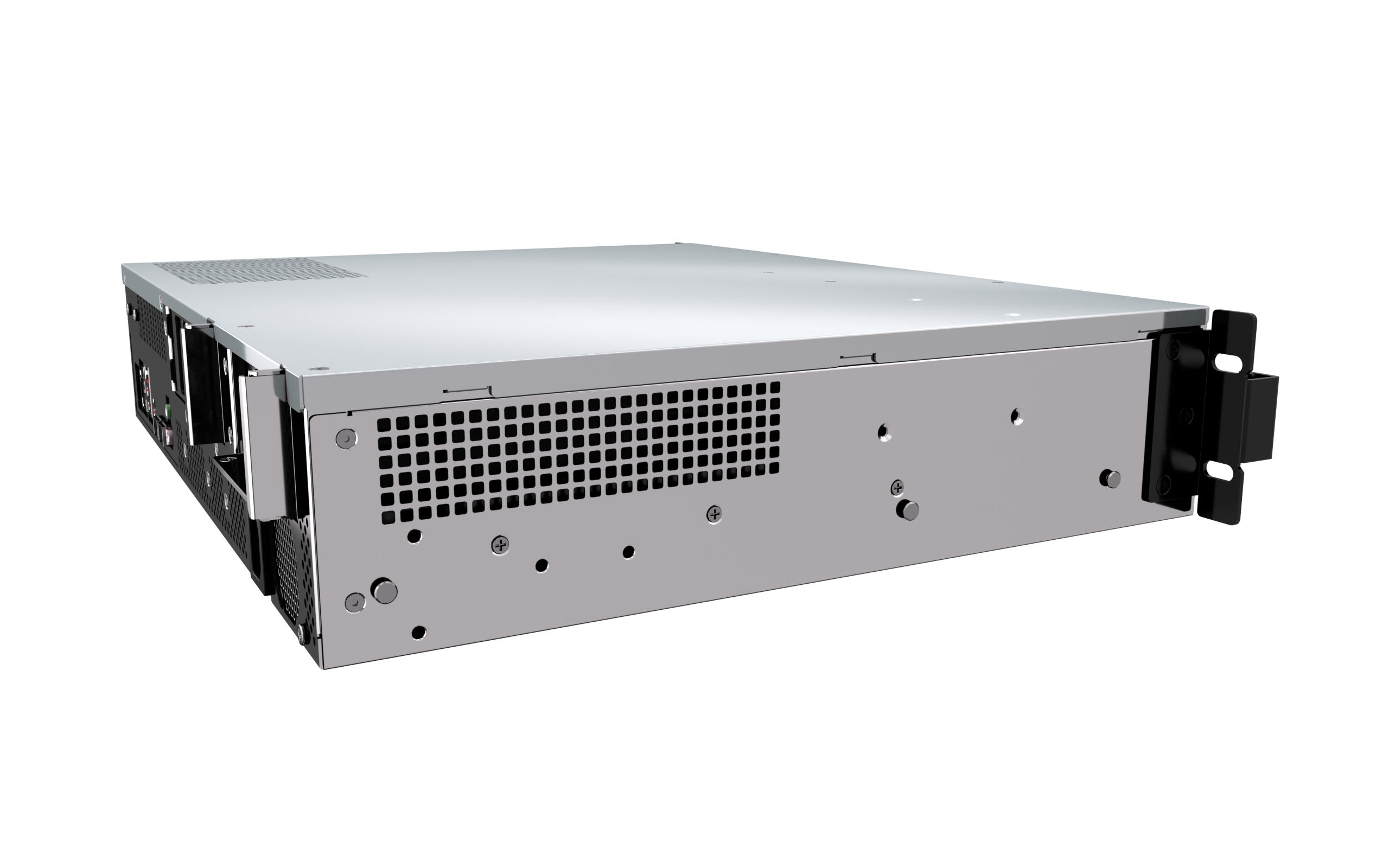

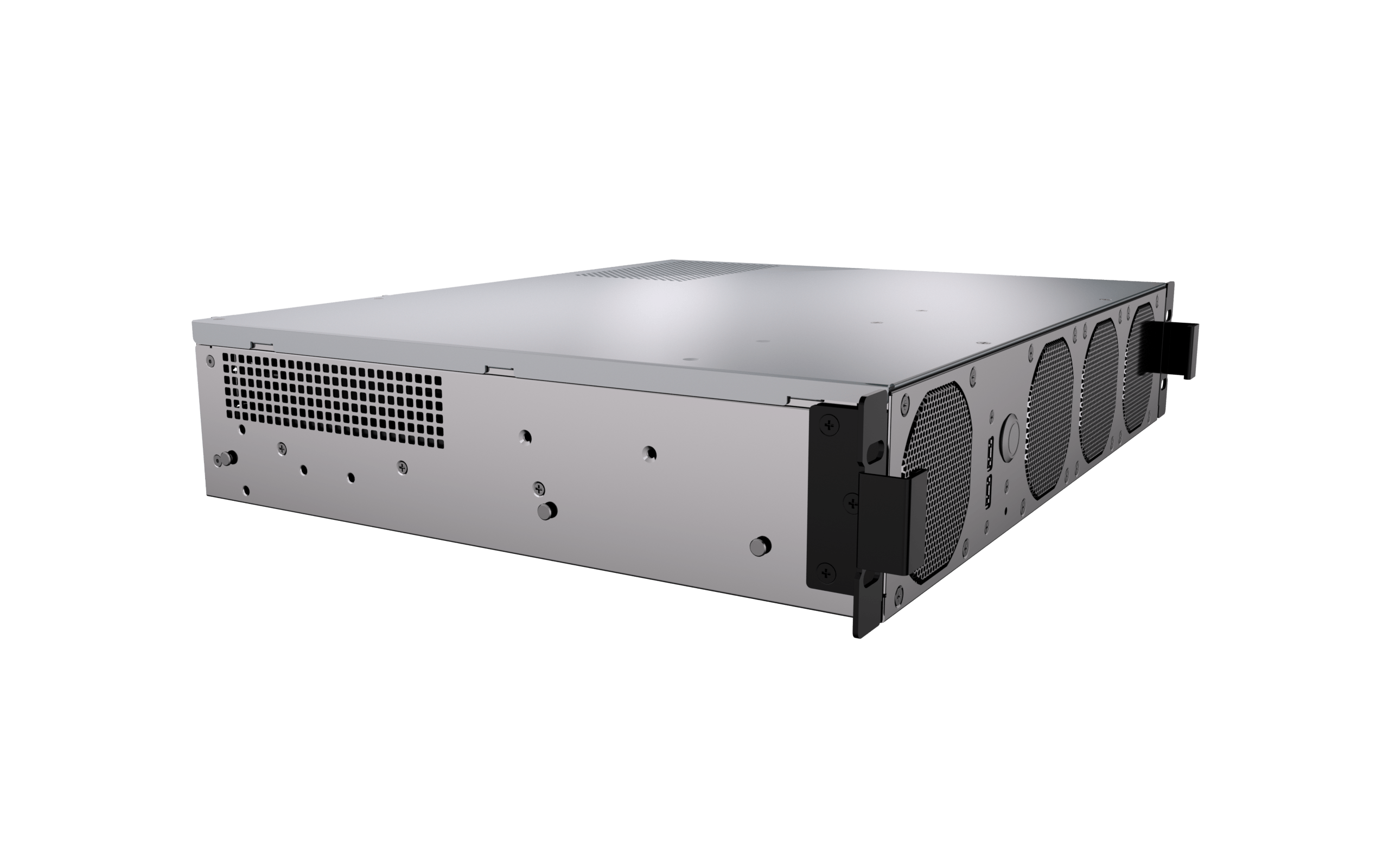

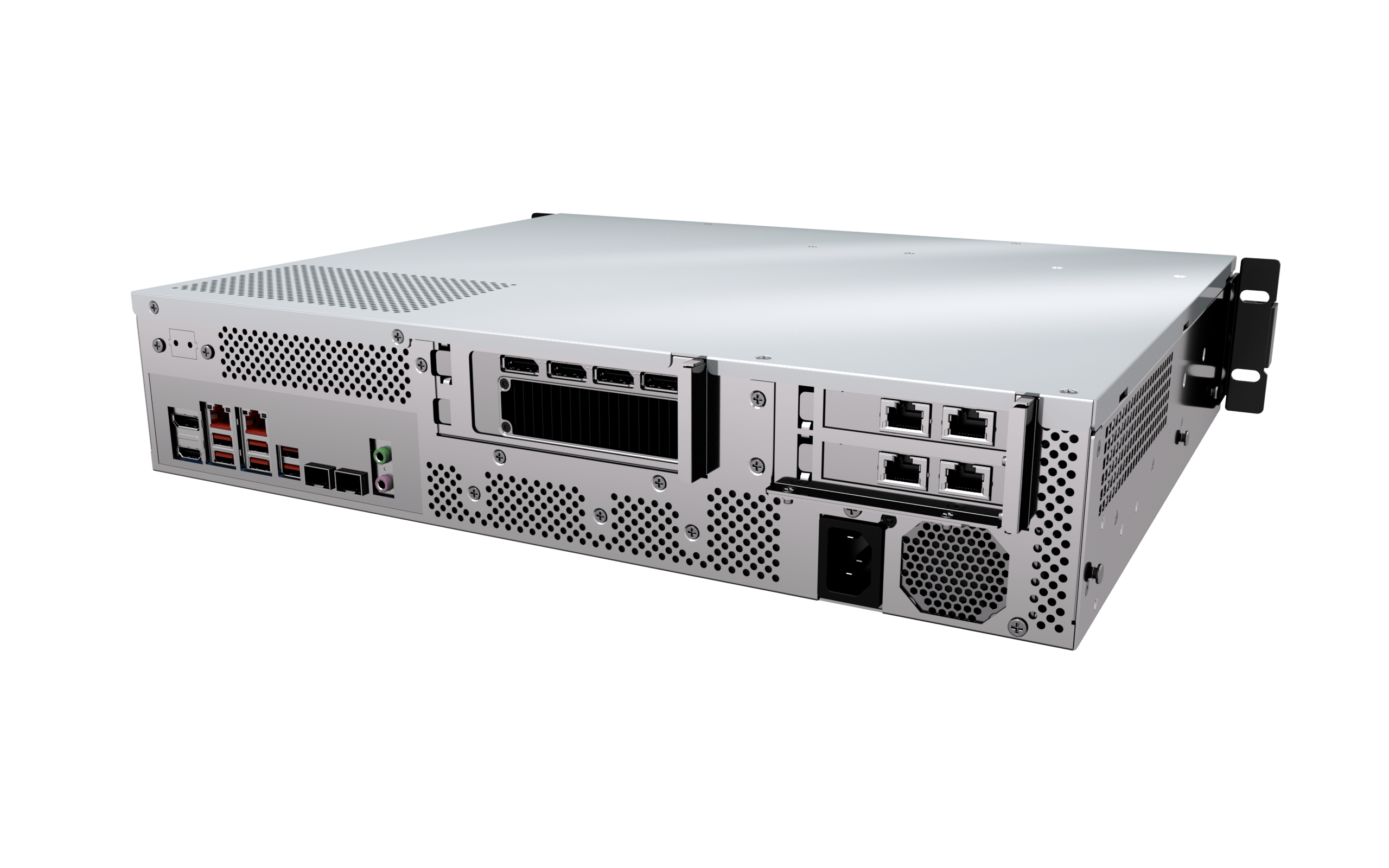

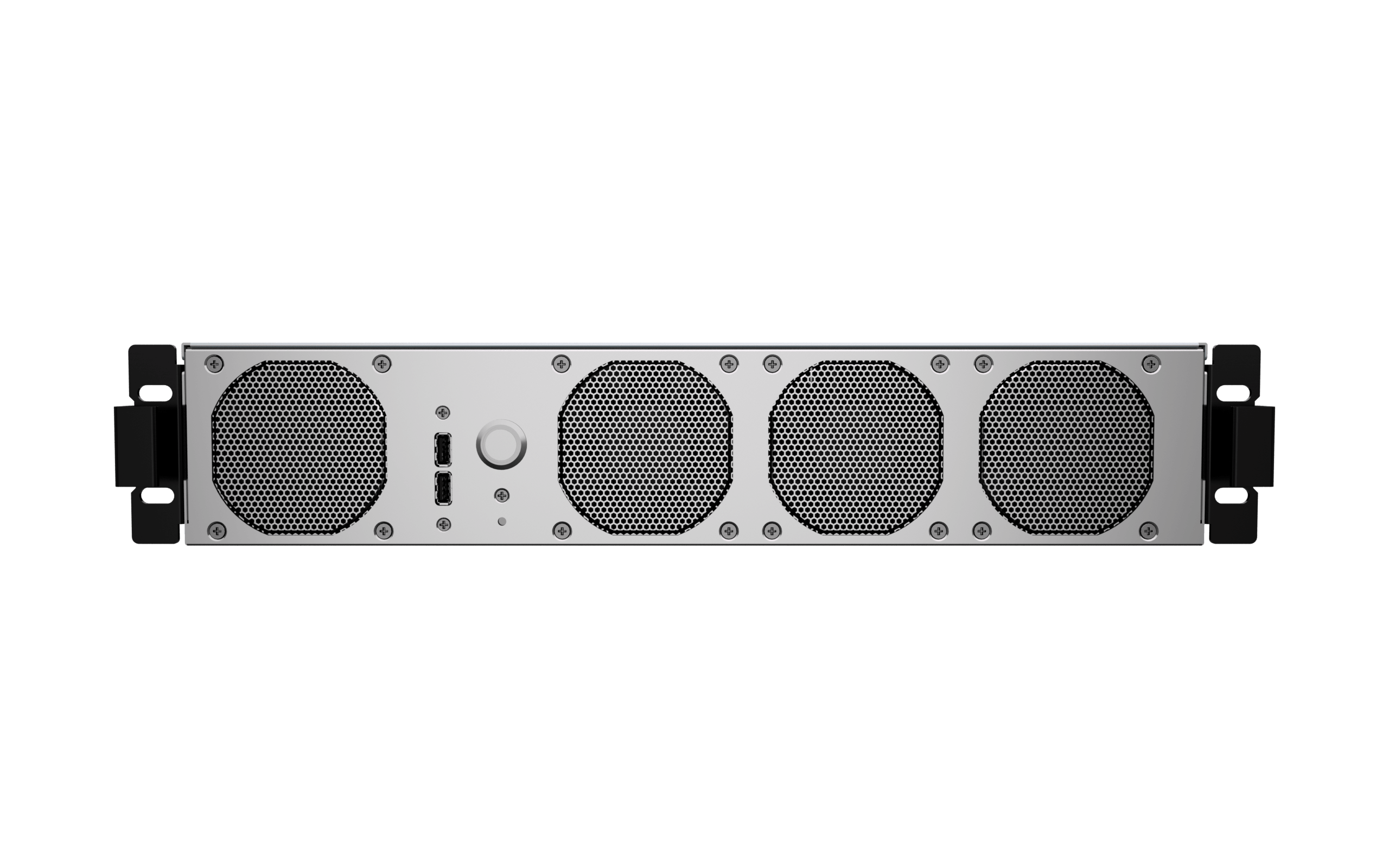

LLM-2U-AM5

Key specifications

Support AMD Ryzen™ 9000/8000/7000 Series Desktop Processors & EPYC 4004 (Max 170W)

AMD B650 Chipset

4x DDR5 5200 UDIMM. Max. up to 192GB (Non-ECC)

2x Broadcom 10GbE LAN (SFP+), 2x GbE LAN

Dual 4K Display: 1x DP, 1x HDMI

2x PCIe x16 Gen 5, 1x PCIe x4 (Open End), 1x PCIe x1

2x M.2 M Key, 1x M.2 E Key

2x 2.5" SATA SSD Drive Bays (Support RAID 0,1)

6x USB 3.2 Gen 2 (Rear), 2x USB 2.0 (Front)

Optional Out-of-Band Management

850W Single Power Supply

Support TPM 2.0

UL 62368 Ed. 3, CE, FCC Class B (pending)
